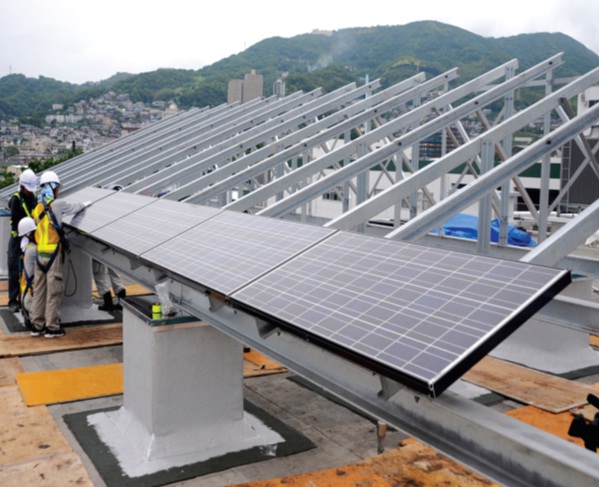

MPIL’s Module Mounting Structures are designed and engineered for each customer's site specific conditions to minimize the filed installation labor and require no filed welding, drilling or other on-site fabrication.

Why MPIL Solar Structures?

  • Easy and fast to assemble.
  • 25 years of maintenance free life.
  • Structures approved by IIT Mumbai for stability.
  • Cost effective.
  • Optimal surface treatment for high corrosive resistance.
  • The structures are well protected against adverse climatic conditions.
  • MPIL system is well designed, adhering to relevant Codal provisions, aesthetically pleasing, well tested and proven.
  • MPIL System is manufactured under controlled conditions, in "State-of-the Art" manufacturing systems, adhering to safety and superior quality parameters.
  • Due to unique profiles the structures can very easily be erected at site with even unskilled laborers.

Features :

  • Suitable for flat and slightly sloped roofs.
  • Suitable for several module dimensions with a panel width from 950 to 1050mm.
  • Total dead load of panels with steel structure and ballast below 10kg/m² of roof achievable.
  • Standard and angle regulation from 5⁰C TO 30⁰C.

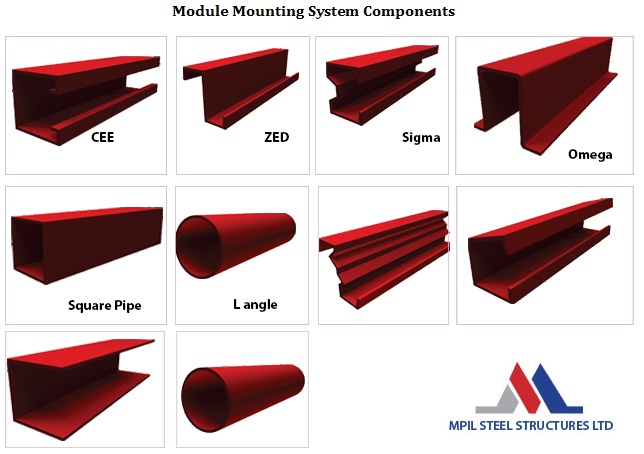

ZED and CEE Purlins, C Channels, bracings, angles and column post are members of Module Mounting structure. They can be pre-galvanized, post galvanized or made of Galvalume steel.
We provides galvanized steel for solar module mounting structure in the following specification:

Pre galvanized structure :

  • Thickness: 0.8 to 3 mm.
  • Material Yielding Sheet: 250 Mpa - 550 Mpa.
  • Line Coating: 100 - 500 GSM.
  • Material confirming to IS277.

Post galvanized structure :

  • Material Yielding Sheet: 250 Mpa - 350 Mpa.
  • Hot dip galvanization up to 80 microns/ 550 GSM.
  • Hot dip galvanization confirms IS2629.

Galvalume Steel :

  • Thickness 0.8 - 1.2 mm.
  • Material Yielding Sheet: 250 Mpa - 550 Mpa.
  • Aluminum Zing Coating: AZ - 70 / AZ – 150.
  • Material confirms to ASTM, A792, SS80.
